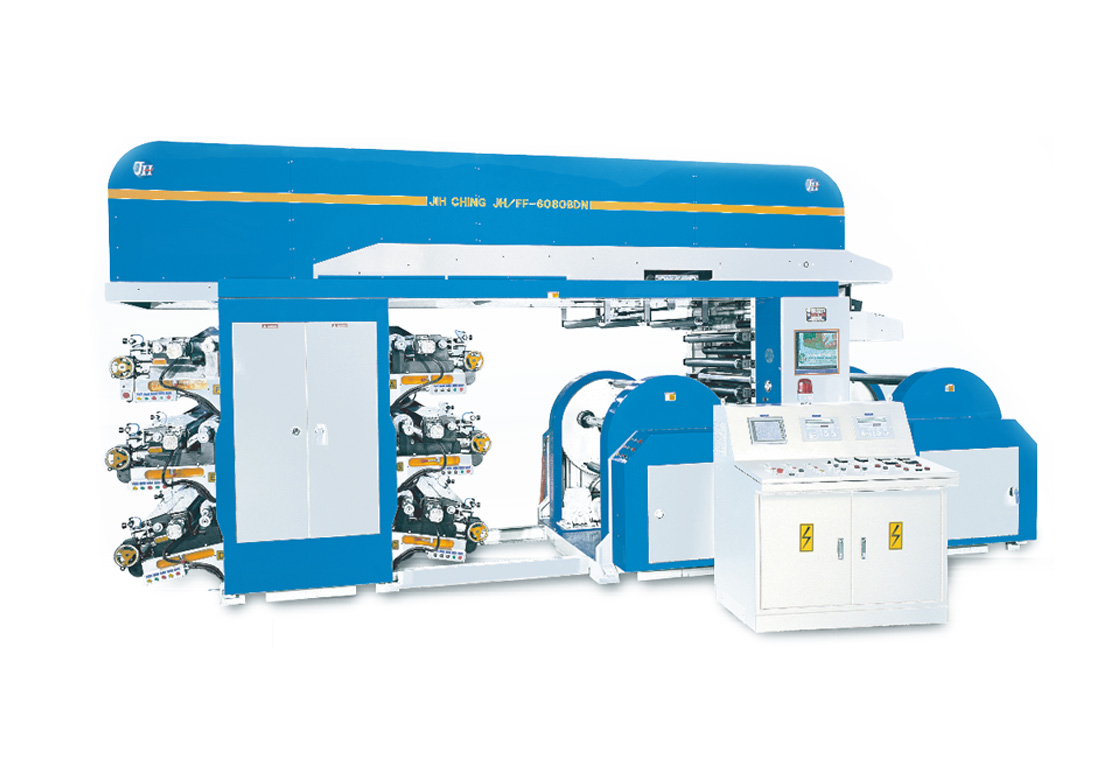

BDN Series – Doctor Blade type 6 COLORS FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)JH/FF-06100BND
FEATURES
- FC-25 cast iron machine frame, vibration-free, at high speed operation.
- Driven by timing belt, quiet and precise.
- Precise doctor blade chamber system with ceramic anilox roller, suitable for superfine printing quality.
- Use differential gear device (made in Japan) to adjust the registration with forward and backward adjustment.
- Main motor by using AC motor (SIEMENS brand) with inverter control (YASKAWA brand) and line speed controlled by harmony synchronous driving system.
- In-feed and out-feed by using AC motor (SIEMENS brand) with inverter control (YASKAWA brand) + super-low friction air cylinder + position examine sensor + precise pressure regulating valve, which can control the tension of film accurately.
- Automatic tension control (MITSUBISHI brand) + magnetic powder brake on unwind and rewind.
- Electronic type automatic edge position control (EPC + Eurpoe brand) on unwind.
- Electric control by using PLC (MITSUBISHI brand) with full color touch-screen type human machine interface (HMI).
- Single-chip advanced print inspection system (SONY brand) with full color LCD monitor.
- All rotating rollers are treated with dynamic balance adjustment.
SPECIFICATION
6 COLORS OFF-LINE SERIES
| Model | Printing Width | Film Width | Repeat Length | Printing Speed | M/C Dimension L x W x H |
| JH/FF-6060BDN | 600 mm | 620 mm | 13” - 35” | 20~150 M / min | 6500 x 4260 x3365mm |
| JH/FF-6080BDN | 800 mm | 820 mm | 13” - 35” | 20~150 M / min | 6500 x 4460 x3365mm |
| JH/FF-60100BDN | 1000 mm | 1020 mm | 13” - 35” | 20~150 M / min | 6500 x4660 x3365mm |
| JH/FF-60125BDN | 1250 mm | 1270 mm | 13” - 35” | 20~150 M / min | 6500 x 4910x3365mm |
| JH/FF-60150BDN | 1500 mm | 1520 mm | 13” - 35” | 20~150 M / min | 6500 x5160x3365mm |
| JH/FF-60160BDN | 1600 mm | 1620 mm | 13” - 35” | 20~150 M / min | 6500 x5260 x3365mm |
