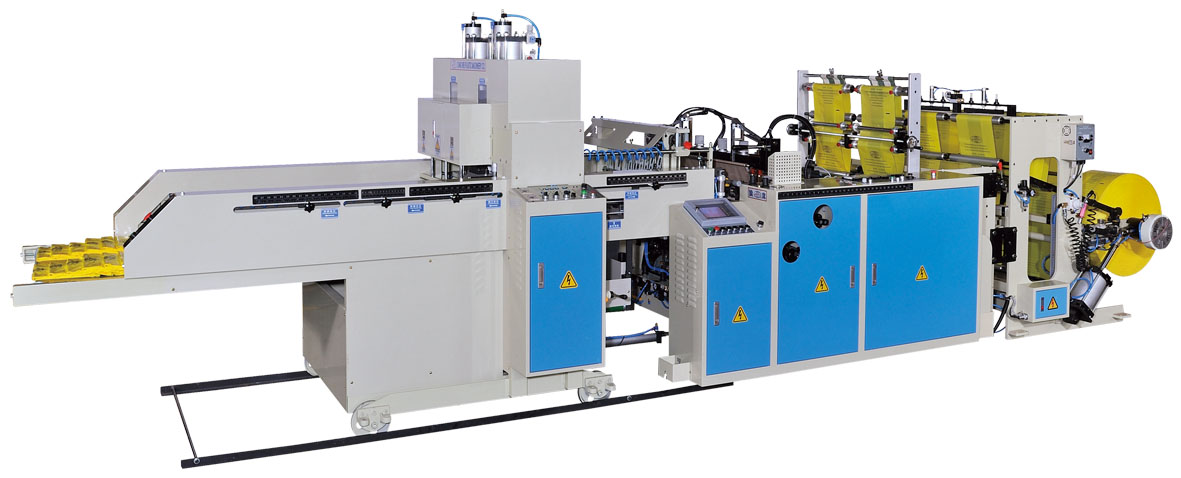

超高速背心袋製袋機CW-800P-SV
特色
- Human touch screen, simple operation.
- Servo motor feeding control, high-speed production.
- Inverter-Motor tension control un-winder, regarding to production speed, brake to change feeding speed. Max, dia of plastic film is 800mm.
- Unwind Stand with pneumatic loading device.
- Air Shaft.
- Auto-punching bags folding device.
- The machine adopted pluging type IC circuit auto-controlled system for easy replacement.
- Punch-out scraps are collected by conveyor for easy disposal.
- Air blowing out feed system incorporating with bottom smoothing device. Ensure neat bags are stackedd fot accurate bags gripping and punching.
- Automatic punching machine use air pressure to push oil hydraulics. Easy to operate, without noise fault of hydraulics.
產品規格
| Model | CW-500P-SV | CW-800P-SV | CW-1000P-SV |
| BAG WIDTH (EACH LINE) | 450 mm x 1 | 330 mm x 2 | 430 mm x 2 |
| BAG LENGTH (MAX.) | 300 ~ 700 mm | 300 ~ 700 mm | 300 ~ 700 mm |
| PRODUCTION SPEED |
120 Meter/min 200 ~ 250 Cycle/min |
120 Meter/min 200 ~ 250 Cycle/min |
120 Meter/min 200 ~ 250 Cycle/min |
| CONVERTING THICKNESS | 0.010 ~ 0.035 mm | 0.010 ~ 0.035 mm | 0.010 ~ 0.035 mm |
| MOTOR (HP) | 2 HP | 2 HP | 2 HP |
| HEATER | 5 kw | 7 kw | 8 kw |
| POWER REQUIRED | 7 kw | 10 kw | 12kw |
| AIR VOLUME & PRESSURE | 5kg/cm2;2500 Ni/min | 7kg/cm2;2700 Ni/min | 8kg/cm2;2800 Ni/min |
| MAX. REEL DIAMETER | 800 mm | 800 mm | 800 mm |
| DIMENSION L x W x H (CM) | 650 x 115 x 160 | 650 x 180 x 160 | 650 x 200 x 160 |
| MACHINE WEIGHT | 1800 kgs | 2500 kgs | 2600 kgs |
| PACKING L x W x H (CM) |
230 x 120 x 160 400 x 150 x 176 |
230 x 180 x 160 400 x 180 x 176 |
230 x 200 x 160 400 x 200 x 176 |
| GROSS WEIGHT | 2300 kgs | 2900 kgs | 3100 kgs |
| REMARK | 1 Photo Cell | 2 Photo Cells | 2 Photo Cells |
